Terminal Procedures

KMGN — Harbor Springs

HARBOR SPRINGS, MI · 4 FAA charts · cycle 6 Aug 2026

FAA MGNElevation 685 ft1 runwayLongest 4,149 ftNon-toweredFuel 100LL avgas, Jet A+Volume EC-1Not for navigation

2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.

All 4 KMGN charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

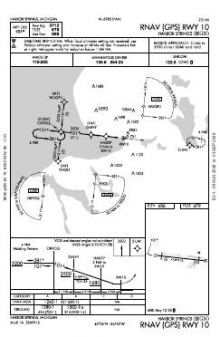

	RNAV (GPS) RWY 10	1A	PDF

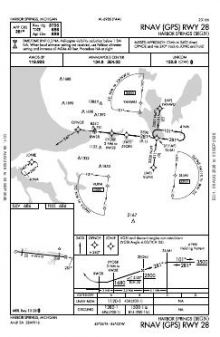

	RNAV (GPS) RWY 28	2A	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF
	ALTERNATE MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KMGN airport information

Control tower: No
Attendance: All all 0800-dusk
ARTCC: Minneapolis Center
Flight service: Lansing
NOTAM facility: MGN (NOTAM-D available)
Magnetic variation: 5W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Fuel: 100LL avgas, Jet A+
Parking: Tie-downs
Landing fee: Yes
Customs: Landing rights airport
Activated: April 1940
Airport area: 95 acres
Ownership: Publicly owned
Sectional: Lake Huron
Last FAA inspection: 2026-03-30

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KMGN radio frequencies

Service	Frequency	Call sign
CTAF	122.8

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KMGN, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
10/28	4,149 ft	75 ft	Asphalt Fair	Medium intensity
10 96°T	PAPI (4-box) 3.5° · displaced threshold 437 ft
28 276°T	PAPI (4-box) 4° · displaced threshold 444 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KMGN is

Latitude, longitude45.4254720, -84.9134720

Elevation685 ft

From Harbor Springs3 nm E

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KMGN

RWY 10 APCH AREA HAS TWO 70 FT LGTD OBSTN POLES, 170 FT LEFT OF CNTRLN; +75 FT TREES ON NORTH SIDE.
ACTVT MIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
LDG FEE WAIVED WITH MNM FUEL PURCHASE.
CELL.
4 FT FENCE, 0 FT DIST, 48 FT R; 15 FT ROAD, 0 FT DIST, 75 FT R; 70 FT LGTD POLE, 180 FT DIST, 240 FT R.
4 FT FENCE, 199 FT DIST; 70 FT TREES, 0 FT DIST, 168 FT L.
PAPI UNUSBL BYD 2 DEGS LEFT OF CNTRLN.
APCH RATIO 1:1 TO DTHR OVR 80 FT TREES, 80 FT DIST, 261 FT L.
APCH RATIO 0:1 TO DTHR OVR 70 FT POLE, 0 FT DIST, 250 FT L.
RWY 28 APCH AREA HAS LGTD OBSTN POLES, 165 FT LEFT & 220 FT RIGHT OF CNTRLN; +80 FT TREES ADJ.
DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
NOISE ABATEMENT PROCS: NO TURBOJET/TURBOFAN ACFT DEPS 2300-0700; NO LOW FLT OVR SRNDG COMMUNITY; ALL ACFT DEPG TO THE WEST TURN SOUTH OVR THE WATER AS SOON AS PRACTICAL.
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KMGN

ID	Airport	City	Distance	Charts
KPLN	Pellston Rgnl/Emmet County	PELLSTON, MI	10 nm NE	7
N98	Boyne City Muni	BOYNE CITY, MI	13 nm S	3
KBFA	Boyne Mountain	BOYNE FALLS, MI	16 nm S	3
KCVX	Charlevoix Muni	CHARLEVOIX, MI	17 nm SW	4
KSLH	Cheboygan County	CHEBOYGAN, MI	22 nm NE	4
KGLR	Gaylord Rgnl	GAYLORD, MI	26 nm S	5
6Y1	Bois Blanc Island	BOIS BLANC ISLAND, MI	27 nm NE	3
KMCD	Mackinac Island	MACKINAC ISLAND, MI	29 nm NE	4

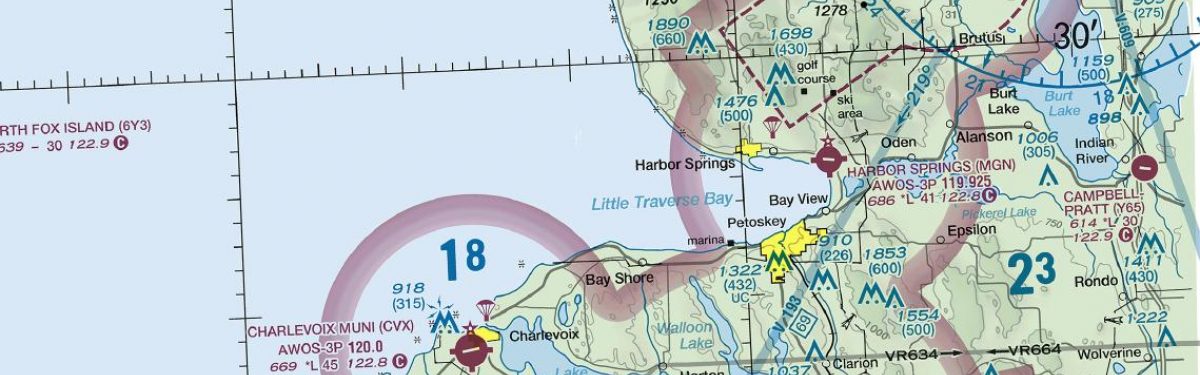

VFR charts covering KMGN

Green BaySectional Chart Lake HuronSectional Chart

Common questions about KMGN

What charts are available for KMGN?

4 current FAA charts for Harbor Springs, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KMGN?

CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KMGN?

Harbor Springs has 1 runway. The longest is 10/28 at 4,149 ft by 75 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KMGN have an ILS approach?

No ILS is published. In total KMGN has 2 published instrument approaches, of which 2 are RNAV (GPS).

Is KMGN a towered airport?

No — Harbor Springs has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KMGN charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
