Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 53.9 MB | Download |
| Print-ready chart, no georeferencing | 117.0 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 117.0 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

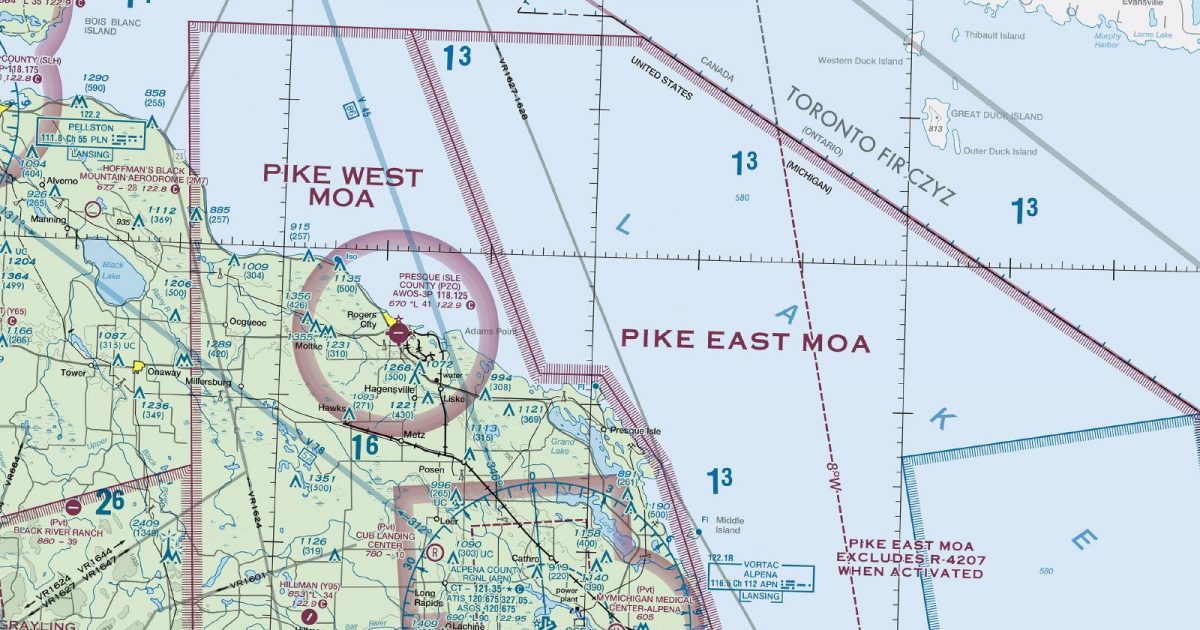

Go PROLake Huron and Georgian Bay dominate this sheet, with coverage extending across northern Michigan, southern and central Ontario, and towards the eastern end of Lake Ontario. The landscape shifts from broad expanses of open water and intricate island-strewn shorelines to the wooded Canadian Shield north of Georgian Bay. Farther south, the country becomes more settled and agricultural, while Michigan’s peninsulas divide the surrounding Great Lakes waters.
The adjoining coverage reflects the chart’s position at the centre of the Great Lakes region. Green Bay continues west, while Detroit takes routes south through lower Michigan and southern Ontario. Chicago joins at the south-western side. Eastbound coverage passes to Montreal, with New York adjoining to the south-east. These connections are particularly relevant to longer journeys following the lakes, crossing the international border region, or continuing between the Great Lakes and the St Lawrence corridor.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KOSC OSC | Oscoda/Wurtsmith | OSCODA, MI | 633 ft | 1 | 11,801 ft |
| CYYZ | Lester B Pearson Intl | TORONTO | 569 ft | 5 | 11,120 ft |
| CYYB | North Bay | NORTH BAY | 1,215 ft | 3 | 10,000 ft |
| CYVO | Val-D'Or | VAL-D'OR | 1,107 ft | 1 | 10,000 ft |
| KAPN APN | Alpena County Rgnl | ALPENA, MI | 689 ft | 2 | 9,001 ft |
| KMBS MBS | Mbs Intl | SAGINAW, MI | 668 ft | 2 | 8,002 ft |
| CYUY | Rouyn-Noranda | ROUYN-NORANDA | 988 ft | 1 | 7,485 ft |
| KCIU CIU | Chippewa County Intl | SAULT STE MARIE, MI | 799 ft | 2 | 7,203 ft |
| KTVC TVC | Cherry Capital | TRAVERSE CITY, MI | 623 ft | 2 | 7,016 ft |
| KGLR GLR | Gaylord Rgnl | GAYLORD, MI | 1,328 ft | 2 | 6,579 ft |
| KPLN PLN | Pellston Rgnl/Emmet County | PELLSTON, MI | 720 ft | 2 | 6,513 ft |
| CYQA | Muskoka | MUSKOKA | 925 ft | 1 | 6,000 ft |
| CYAM | Sault Ste Marie | SAULT STE MARIE | 630 ft | 2 | 6,000 ft |
| KMBL MBL | Manistee County/Blacker | MANISTEE, MI | 621 ft | 2 | 5,501 ft |
| KANJ ANJ | Sault Ste Marie Muni/Sanderson Fld | SAULT STE MARIE, MI | 716 ft | 1 | 5,234 ft |
| KBFA BFA | Boyne Mountain | BOYNE FALLS, MI | 719 ft | 1 | 5,187 ft |
| CYVV | Wiarton | WIARTON | 729 ft | 1 | 5,021 ft |
| KGOV GOV | Grayling AAF | GRAYLING, MI | 1,158 ft | 2 | 5,005 ft |
| KACB ACB | Antrim County | BELLAIRE, MI | 623 ft | 1 | 5,003 ft |
| KLDM LDM | Mason County | LUDINGTON, MI | 646 ft | 2 | 5,003 ft |
| KRQB RQB | Roben-Hood | BIG RAPIDS, MI | 994 ft | 2 | 5,003 ft |
| KISQ ISQ | Schoolcraft County | MANISTIQUE, MI | 684 ft | 2 | 5,001 ft |
| KCAD CAD | Wexford County | CADILLAC, MI | 1,306 ft | 2 | 5,001 ft |
| KBAX BAX | Huron County Meml | BAD AXE, MI | 763 ft | 2 | 5,000 ft |
| CYLS | Lake Simcoe Rgnl | BARRIE-ORILLIA | 968 ft | 1 | 5,000 ft |
| KMOP MOP | Mount Pleasant Muni | MOUNT PLEASANT, MI | 754 ft | 2 | 5,000 ft |
| CPZ3 | Mountain View | MOUNTAIN VIEW | 362 ft | 1 | 5,000 ft |
| CYTA | Pembroke | PEMBROKE | 529 ft | 1 | 5,000 ft |
| CYPQ | Peterborough | PETERBOROUGH | 628 ft | 2 | 5,000 ft |
| CYSB | Sudbury | SUDBURY | 1,141 ft | 2 | 5,000 ft |
| Y31 | West Branch Community | WEST BRANCH, MI | 882 ft | 1 | 5,000 ft |
| 6D9 | Iosco County | EAST TAWAS, MI | 605 ft | 1 | 4,802 ft |
| KGDW GDW | Gladwin Zettel Meml | GLADWIN, MI | 774 ft | 2 | 4,699 ft |
| KCVX CVX | Charlevoix Muni | CHARLEVOIX, MI | 668 ft | 2 | 4,549 ft |
| KERY ERY | Luce County | NEWBERRY, MI | 869 ft | 2 | 4,304 ft |
| KSJX SJX | Beaver Island | BEAVER ISLAND, MI | 669 ft | 3 | 4,299 ft |
| 4Y4 | Lakes Of The North | GAYLORD, MI | 1,287 ft | 1 | 4,212 ft |
| KMGN MGN | Harbor Springs | HARBOR SPRINGS, MI | 685 ft | 1 | 4,149 ft |
| KPZQ PZQ | Presque Isle County | ROGERS CITY, MI | 670 ft | 1 | 4,106 ft |
| KFKS FKS | Frankfort Dow Meml Fld | FRANKFORT, MI | 633 ft | 1 | 4,050 ft |
| KSLH SLH | Cheboygan County | CHEBOYGAN, MI | 639 ft | 2 | 4,004 ft |
| N98 | Boyne City Muni | BOYNE CITY, MI | 659 ft | 1 | 4,001 ft |
| KDRM DRM | Drummond Island | DRUMMOND ISLAND, MI | 668 ft | 2 | 4,000 ft |
| CYOO | Oshawa | OSHAWA | 459 ft | 2 | 4,000 ft |
| KHTL HTL | Roscommon County/Blodgett Meml | HOUGHTON LAKE, MI | 1,149 ft | 2 | 4,000 ft |
| CYTZ | Toronto/City Centre | TORONTO | 251 ft | 3 | 4,000 ft |
| CYOS | Owen Sound Billy Bishop Rgnl | OWEN SOUND | 1,007 ft | 1 | 3,932 ft |
| Y91 | Home Acres Sky Ranch | LAKE CITY, MI | 1,246 ft | 2 | 3,830 ft |
| 9C8 | Evart Muni | EVART, MI | 1,019 ft | 1 | 3,804 ft |
| KIKW IKW | Jack Barstow | MIDLAND, MI | 634 ft | 2 | 3,801 ft |
| 7D3 | Baldwin Muni | BALDWIN, MI | 828 ft | 2 | 3,800 ft |
| 0C5 | Canadian Lakes | MECOSTA, MI | 960 ft | 1 | 3,800 ft |
| 83D | Mackinac County | ST IGNACE, MI | 623 ft | 1 | 3,800 ft |
| 5M6 | Sugar Springs Airpark | GLADWIN, MI | 953 ft | 1 | 3,800 ft |
| 3CM | James Clements Muni | BAY CITY, MI | 584 ft | 5 | 3,798 ft |
| 5Y1 | Albert J Lindberg | HESSEL, MI | 760 ft | 1 | 3,700 ft |
| 53W | Woodruff Lake | WINN, MI | 938 ft | 1 | 3,700 ft |
| 5D5 | Woolsey Meml | NORTHPORT, MI | 628 ft | 2 | 3,663 ft |
| D11 | Ojibwa Airpark | WEIDMAN, MI | 959 ft | 1 | 3,600 ft |
| 3RC | Roscommon Conservation | ROSCOMMON, MI | 1,157 ft | 2 | 3,552 ft |
| KMCD MCD | Mackinac Island | MACKINAC ISLAND, MI | 741 ft | 1 | 3,501 ft |
| 48D | Clare Muni | CLARE, MI | 856 ft | 2 | 3,500 ft |
| Y89 | Kalkaska City | KALKASKA, MI | 1,029 ft | 1 | 3,500 ft |
| C04 | Oceana County | HART/SHELBY, MI | 915 ft | 2 | 3,500 ft |
| 6Y8 | Welke | BEAVER ISLAND, MI | 664 ft | 2 | 3,500 ft |
| 6Y1 | Bois Blanc Island | BOIS BLANC ISLAND, MI | 664 ft | 1 | 3,498 ft |
| 38C | Cain Fld | STANWOOD, MI | 897 ft | 1 | 3,472 ft |
| Y95 | Hillman | HILLMAN, MI | 853 ft | 2 | 3,400 ft |
| D90 | Mancelona Muni | MANCELONA, MI | 1,133 ft | 2 | 3,400 ft |
| 52I | Gross | PINCONNING, MI | 618 ft | 1 | 3,300 ft |
| 59M | Torchport | EASTPORT, MI | 640 ft | 2 | 3,300 ft |
| Y94 | East Jordan City | EAST JORDAN, MI | 641 ft | 2 | 3,250 ft |
| Y93 | Atlanta Muni | ATLANTA, MI | 880 ft | 2 | 3,223 ft |
| Y65 | Campbell-Pratt | INDIAN RIVER, MI | 614 ft | 1 | 3,005 ft |
| 6Y3 | North Fox Island | NORTH FOX ISLAND, MI | 639 ft | 1 | 3,001 ft |
| 51M | Oscoda County/Dennis Kauffman Meml | MIO, MI | 1,032 ft | 1 | 3,001 ft |
| 80D | Clare County | HARRISON, MI | 1,142 ft | 2 | 2,978 ft |
| 42C | White Cloud | WHITE CLOUD, MI | 914 ft | 1 | 2,916 ft |
| 7Y2 | Thompsonville | THOMPSONVILLE, MI | 793 ft | 2 | 2,900 ft |
| CPF2 | Bar River | BAR RIVER | 591 ft | 1 | 2,850 ft |
| Y98 | Grand Marais | GRAND MARAIS, MI | 838 ft | 2 | 2,800 ft |
| Y88 | Green Lake | INTERLOCHEN, MI | 866 ft | 2 | 2,800 ft |
| 2M7 | Hoffman'S Black Mountain Aerodrome | CHEBOYGAN, MI | 677 ft | 1 | 2,800 ft |
| 6Y0 | Moorestown Airpark | MOORESTOWN, MI | 1,211 ft | 2 | 2,800 ft |
| 5Y2 | Houghton Lake State | HOUGHTON LAKE HEIGHTS, MI | 1,165 ft | 1 | 2,750 ft |
| 6Y6 | St Helen | ST HELEN, MI | 1,198 ft | 2 | 2,600 ft |
| Y87 | William B Bolton | EMPIRE, MI | 944 ft | 2 | 2,600 ft |
| D15 | Lake Isabella/Cal Brewer Meml | LAKE ISABELLA, MI | 886 ft | 1 | 2,582 ft |
| 4M0 | Lake Ann Airway Estates | TRAVERSE CITY, MI | 820 ft | 1 | 2,537 ft |
| E53 | Engler Fld | BAD AXE, MI | 725 ft | 1 | 2,523 ft |
| Y30 | Pbeaaye | TOPINABEE, MI | 690 ft | 1 | 2,470 ft |
| H80 | Field Of Dreams | HALE, MI | 830 ft | 1 | 2,400 ft |
| 6Y5 | Two Hearted Airstrip | NEWBERRY, MI | 680 ft | 1 | 2,400 ft |
| 4Y9 | Eagles Landing | HARRIETTA, MI | 993 ft | 1 | 2,200 ft |
| 3L7 | Milwrick Flying M | LINCOLN, MI | 830 ft | 1 | 2,200 ft |
| 98G | Sebewaing Township | SEBEWAING, MI | 584 ft | 2 | 2,178 ft |
| 27C | Mecosta Morton | MECOSTA, MI | 1,022 ft | 2 | 2,027 ft |
| MI1 | Denton Farms | CLARE, MI | 851 ft | 1 | 1,800 ft |
| 29C | Grindstone Air Harbor | PORT AUSTIN, MI | 640 ft | 1 | 1,800 ft |
99 public-use airports within this chart's coverage, ordered by runway length. A further 28 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Michigan is available as a single 116.2 MB archive (546 charts) — see the Michigan airports.
It spans 43.5°N to 48.3°N and 86.5°W to 76.3°W. Airports on the sheet fall within Michigan. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (53.9 MB). Take the PDF to print it or read it on a second screen (117.0 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Montreal to the east, Green Bay to the west, Detroit to the south, Chicago to the south-west and New York to the south-east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
