NEW ORLEANS, LA · 24 FAA charts · cycle 6 Aug 2026

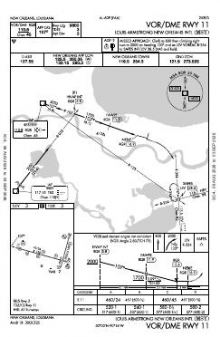

14 published instrument approaches: 5 ILS approaches including CAT II/III minima, 7 RNAV (GPS), 1 VOR, serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

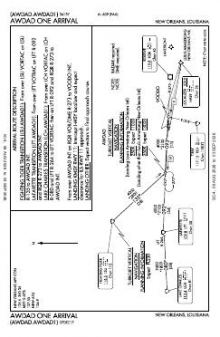

 | AWDAD ONE | — | |
 | MNSTR TWO (RNAV) | — | |
 | MNSTR TWO (RNAV), CONT.1 | — | |
 | OLEDD FOUR | — | |
 | TRSSH TWO (RNAV) | — | |
 | TRSSH TWO (RNAV), CONT.1 | — | |
 | TRSSH TWO (RNAV), CONT.2 | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| UNICOM | 122.95 | |
| Tower | 119.5 | New Orleans |
| Ground | 121.9 | New Orleans |
| Clearance delivery | 120.925 | New Orleans |
| ATIS | 127.55 | New Orleans |
| Approach | 125.5West133.15East | New Orleans |
| Emergency | 121.5 | New Orleans |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 11/29 | 10,104 ft | 150 ft | Concrete Good | High intensity |
| 11 105°T | ILS/DME · PAPI (4-box) 2.8° · ALSF-2 approach lighting | |||
| 29 285°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 304 ft | |||
| 02/20 | 7,002 ft | 150 ft | Concrete Good | High intensity |
| 02 15°T | ILS/DME · PAPI (4-box) 3° · RLLS | |||
| 20 195°T | LOC/DME · PAPI (4-box) 3° · MALS approach lighting | |||
| H1 | 50 ft | 50 ft | Asphalt Fair | |
| H2 | 50 ft | 50 ft | Concrete Fair | |
Runway and approach-aid data from the FAA NASR 28-day subscription.
29.9932720, -90.2590280
3 ft10 nm WPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
All four ends of MSY’s two fixed-wing runways have published approaches. The mix is particularly broad: five ILS procedures, including one with CAT II/III minima, sit alongside seven RNAV (GPS) procedures plus localiser and VOR coverage. This gives each runway alignment instrument support rather than concentrating procedures on a preferred end. At 10,104 ft, runway 11/29 provides over 3,000 ft more pavement than 02/20, making the two alignments materially different where runway-length requirements are concerned.
Lakefront and New Orleans NAS JRB have the broadest nearby procedure sets, while Port of South Louisiana, Slidell and Hammond Northshore have markedly thinner coverage. The New Orleans Sectional adds wider visual context, the Terminal Area Chart supplies more detailed local coverage, and the US Gulf Coast Helicopter Route Chart adds dedicated helicopter-routing information absent from the instrument procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KNEW | Lakefront | NEW ORLEANS, LA | 12 nm E | 15 |
| KNBG | New Orleans NAS Jrb (Alvin Callender Fld) | NEW ORLEANS, LA | 16 nm SE | 17 |
| KAPS | Port Of South Louisiana Exec Rgnl | RESERVE, LA | 18 nm W | 6 |
| KASD | Slidell | SLIDELL, LA | 31 nm NE | 4 |
| KHDC | Hammond Northshore Rgnl | HAMMOND, LA | 33 nm N | 8 |
| KHUM | Houma-Terrebonne | HOUMA, LA | 33 nm SW | 11 |
| KGAO | South Lafourche Leonard Miller Jr | GALLIANO, LA | 33 nm S | 5 |
| L83 | Thibodaux Muni | THIBODAUX, LA | 33 nm SW | 2 |
24 current FAA charts for Louis Armstrong New Orleans Intl, including 14 instrument approachs, 7 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 119.5; Ground 121.9; ATIS 127.55; UNICOM 122.95; Clearance delivery 120.925. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Louis Armstrong New Orleans Intl has 4 runways. The longest is 11/29 at 10,104 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 5 ILS procedures are published, including CAT II/III minima. In total KMSY has 14 published instrument approaches, of which 7 are RNAV (GPS).

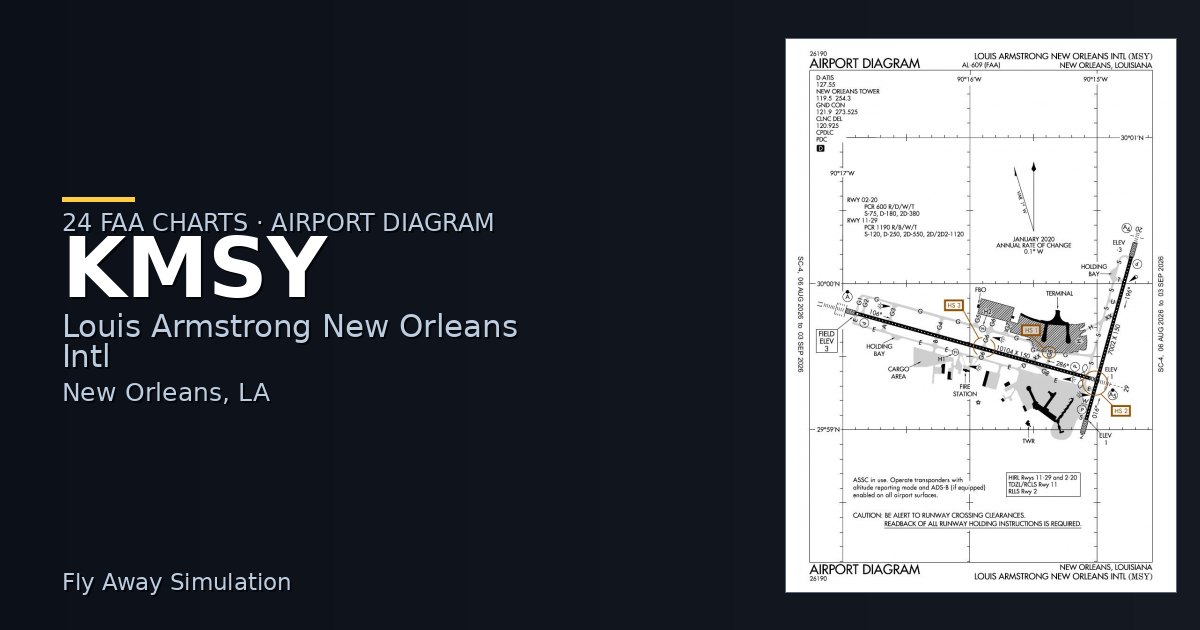

The official FAA airport diagram for Louis Armstrong New Orleans Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

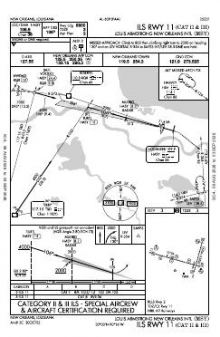

Yes. 1 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.
Yes. Louis Armstrong New Orleans Intl has an operating control tower, within Houston Center's airspace. Tower, ground and clearance frequencies are listed on this page.
4, which is why the chart set is as large as it is — each runway end that supports an instrument approach needs its own plates. The runway diagram on this page shows the layout to scale.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
