Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 31.7 MB | Download |
| Print-ready chart, no georeferencing | 64.3 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 64.3 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

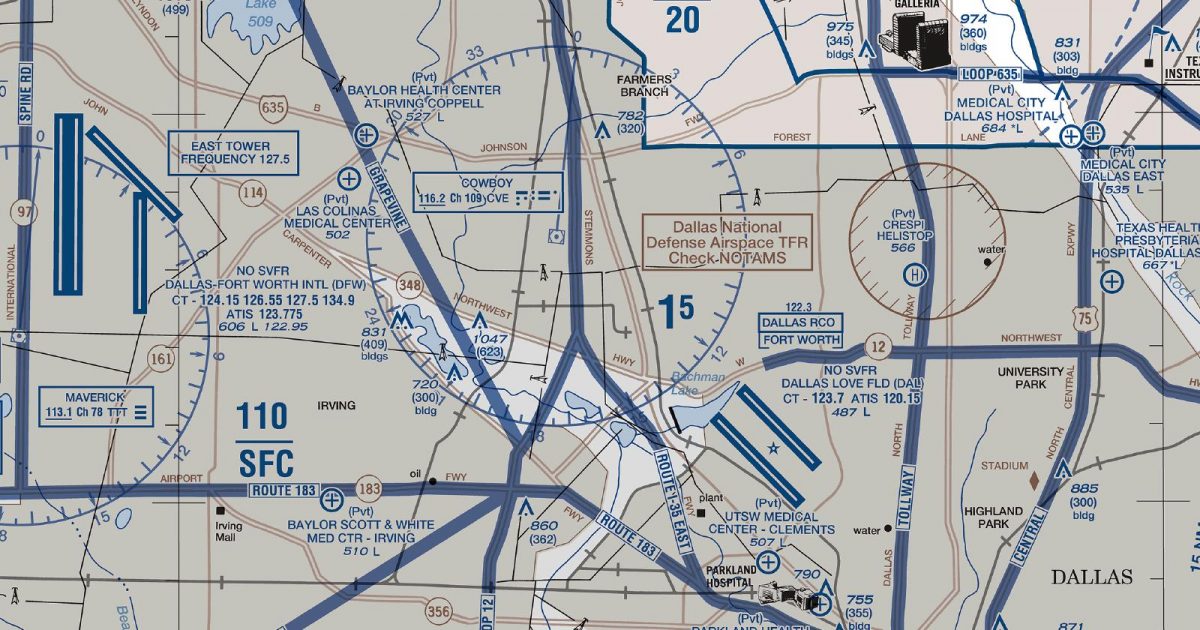

Go PROFrom Weatherford in the west to the country approaching Terrell in the east, this sheet spans the full Dallas–Fort Worth urban corridor. It reaches north beyond Denton and south towards Waxahachie, taking in the dense central Metroplex and its broad suburban margins.
The setting is predominantly rolling North Texas prairie rather than mountainous terrain. Extensive development, major transport corridors and numerous reservoirs give way to more open farmland near the outer edges. That contrast makes the sheet particularly characteristic of helicopter flying around a large, dispersed inland conurbation.
The same area also appears on the relevant Sectional Aeronautical Chart and Terminal Area Chart. The sectional places Dallas–Fort Worth within a much wider regional setting, making it the broader-context companion for routes entering or leaving North Texas. The terminal area chart provides an enlarged treatment of the busy metropolitan area, while the Helicopter Route Chart presents the specialised rotorcraft view of the Metroplex on a single, self-contained sheet.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KDFW DFW | Dallas-Fort Worth Intl | DALLAS-FORT WORTH, TX | 606 ft | 7 | 13,401 ft |
| KAFW AFW | Perot Fld/Fort Worth Alliance | FORT WORTH, TX | 723 ft | 2 | 11,125 ft |
| KDAL DAL | Dallas Love Fld | DALLAS, TX | 486 ft | 2 | 8,800 ft |
| KFTW FTW | Fort Worth Meacham Intl | FORT WORTH, TX | 710 ft | 4 | 7,502 ft |
| KADS ADS | Addison | DALLAS, TX | 644 ft | 1 | 7,203 ft |
| KRBD RBD | Dallas Exec | DALLAS, TX | 660 ft | 2 | 7,136 ft |
| KDTO DTO | Denton Enterprise | DENTON, TX | 642 ft | 2 | 7,002 ft |
| KTKI TKI | Mckinney Ntl | DALLAS, TX | 588 ft | 1 | 7,002 ft |
| KLNC LNC | Lancaster Rgnl | LANCASTER, TX | 501 ft | 1 | 6,500 ft |
| KJWY JWY | Mid-Way Rgnl | MIDLOTHIAN/WAXAHACHIE, TX | 727 ft | 1 | 6,500 ft |
| KGKY GKY | Arlington Muni | ARLINGTON, TX | 628 ft | 1 | 6,080 ft |
| KFWS FWS | Fort Worth Spinks | FORT WORTH, TX | 700 ft | 2 | 6,002 ft |
| KHQZ HQZ | Mesquite Metro | MESQUITE, TX | 446 ft | 1 | 6,000 ft |
| 4T2 | Kenneth Copeland | FORT WORTH, TX | 693 ft | 1 | 5,943 ft |
| KGDJ GDJ | Granbury Rgnl | GRANBURY, TX | 835 ft | 1 | 5,201 ft |
| KXBP XBP | Bridgeport Muni | BRIDGEPORT, TX | 863 ft | 1 | 5,005 ft |
| T31 | Aero Country | MC KINNEY, TX | 765 ft | 1 | 4,352 ft |
| KLUD LUD | Decatur Muni | DECATUR, TX | 1,046 ft | 1 | 4,200 ft |
| 50F | Bourland Fld | FORT WORTH, TX | 873 ft | 1 | 4,049 ft |
| KGPM GPM | Grand Prairie Muni | GRAND PRAIRIE, TX | 590 ft | 2 | 4,001 ft |
| T13 | Dallas South Port | PALMER, TX | 474 ft | 1 | 3,800 ft |
| T67 | Hicks Airfield | FORT WORTH, TX | 855 ft | 1 | 3,740 ft |
| 76T | Bishop | DECATUR, TX | 888 ft | 1 | 3,730 ft |
| T76 | Rhome Meadows | RHOME, TX | 900 ft | 1 | 3,700 ft |
| 52F | Aero Valley | ROANOKE, TX | 643 ft | 1 | 3,500 ft |
| 9F9 | Sycamore Strip | FORT WORTH, TX | 762 ft | 1 | 3,375 ft |
| F46 | Ralph M Hall/Rockwall Muni | ROCKWALL, TX | 574 ft | 1 | 3,373 ft |
| T56 | Eagle'S Nest Estates | MIDLOTHIAN, TX | 780 ft | 1 | 3,216 ft |
| F69 | Air Park-Dallas | DALLAS, TX | 695 ft | 1 | 3,080 ft |
| 58T | Heritage Creek Airstrip | DECATUR, TX | 883 ft | 1 | 3,000 ft |
| 16X | Propwash | JUSTIN, TX | 804 ft | 1 | 3,000 ft |
| KWEA WEA | Parker County | WEATHERFORD, TX | 991 ft | 1 | 2,892 ft |
| 70T | Fairview | RHOME, TX | 915 ft | 1 | 2,861 ft |
| 30F | Lakeview | LAKE DALLAS, TX | 535 ft | 2 | 2,815 ft |
| 1F7 | Airpark East | DALLAS, TX | 500 ft | 1 | 2,630 ft |
| 20T | Aresti Aerodrome | GODLEY, TX | 985 ft | 1 | 2,500 ft |
| 74T | Hicks | PONDER, TX | 725 ft | 1 | 2,364 ft |
| 3T6 | Clark | JUSTIN, TX | 705 ft | 1 | 1,800 ft |
| XA0 | Prose Fld | JUSTIN, TX | 685 ft | 1 | 1,660 ft |
| 35X | Triple-Ace Fld | DECATUR, TX | 1,010 ft | 1 | 1,271 ft |
40 public-use airports within this chart's coverage, ordered by runway length. A further 65 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Texas is available as a single 393.0 MB archive (2,019 charts) — see the Texas airports.
It spans 32.4°N to 33.3°N and 97.8°W to 96.3°W. Airports on the sheet fall within Texas. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (31.7 MB). Take the PDF to print it or read it on a second screen (64.3 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
