Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 74.6 MB | Download |
| Print-ready chart, no georeferencing | 156.8 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 156.8 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

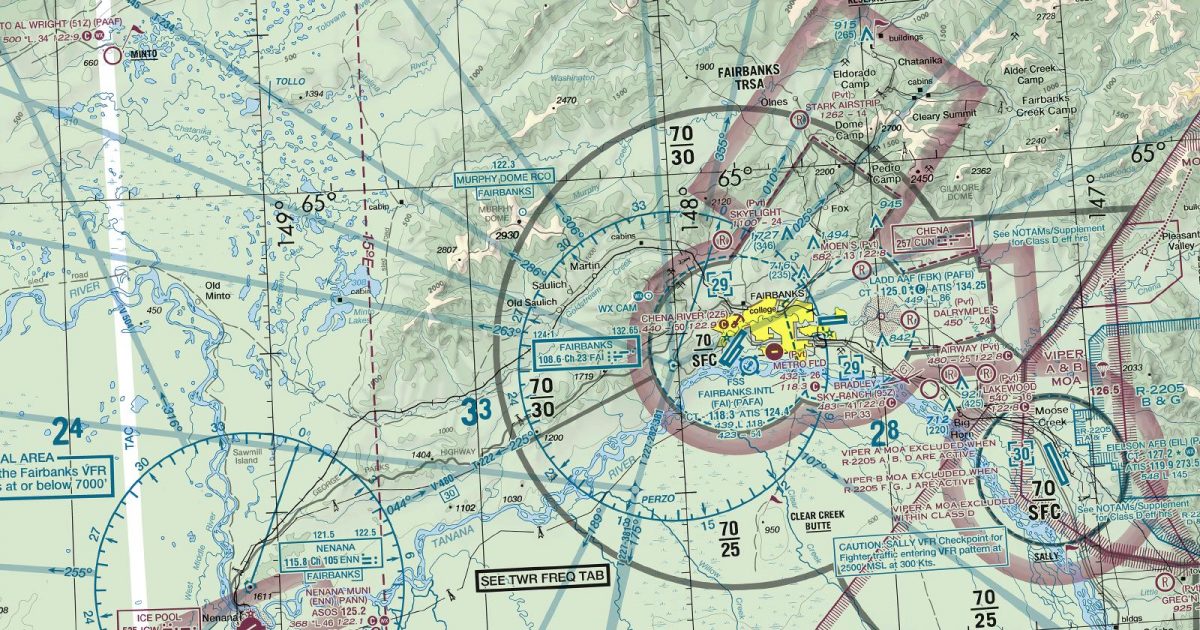

Go PROFrom the northern Alaska Range across Fairbanks and the Yukon basin to Brooks Range country, this sheet cuts through a substantial part of central Alaska. It crosses the Arctic Circle and brings together broad river lowlands, boreal interior, rolling uplands and increasingly rugged terrain to the north and south. The western reach approaches the Norton Sound hinterland, while the eastern side remains within Alaska’s upper Yukon country.
Routes continuing east pass onto the Dawson sheet. Anchorage adjoins to the south-east and McGrath to the south-west, covering onward travel around the Alaska Range and adjacent interior. The western edge meets Bethel, Nome and Cape Lisburne at different points, reflecting the sheet layout across western Alaska, while Point Barrow connects at the north-east. These neighbours make the Fairbanks sheet a central link between south-central Alaska, the western interior and routes extending towards the Arctic.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| PAFA FAI | Fairbanks Intl | FAIRBANKS, AK | 439 ft | 4 | 11,800 ft |
| PAGA GAL | Edward G Pitka Sr | GALENA, AK | 153 ft | 2 | 6,000 ft |
| PABT BTT | Bettles | BETTLES, AK | 647 ft | 2 | 5,190 ft |
| PFYU FYU | Fort Yukon | FORT YUKON, AK | 447 ft | 1 | 5,000 ft |
| PAPR PPC | Prospect Creek | PROSPECT CREEK, AK | 1,094 ft | 1 | 4,968 ft |
| PAKP AKP | Anaktuvuk Pass | ANAKTUVUK PASS, AK | 2,106 ft | 1 | 4,800 ft |
| PODC DCK | Dahl Creek | DAHL CREEK, AK | 260 ft | 1 | 4,780 ft |
| PANN ENN | Nenana Muni | NENANA, AK | 367 ft | 3 | 4,600 ft |
| PARC ARC | Arctic Village | ARCTIC VILLAGE, AK | 2,092 ft | 1 | 4,500 ft |
| PATA TAL | Ralph M Calhoun Meml | TANANA, AK | 242 ft | 1 | 4,400 ft |
| PAMH MHM | Minchumina | MINCHUMINA, AK | 681 ft | 1 | 4,184 ft |
| 95Z | Bradley Sky-Ranch | NORTH POLE, AK | 483 ft | 1 | 4,100 ft |
| PAOB OBU | Kobuk | KOBUK, AK | 142 ft | 1 | 4,020 ft |
| PACX CXF | Coldfoot | COLDFOOT, AK | 1,049 ft | 1 | 4,011 ft |
| PANU NUL | Nulato | NULATO, AK | 405 ft | 1 | 4,011 ft |
| PAGH SHG | Shungnak | SHUNGNAK, AK | 205 ft | 1 | 4,001 ft |
| PFAL 6A8 | Allakaket | ALLAKAKET, AK | 441 ft | 1 | 4,000 ft |
| PAFM AFM | Ambler | AMBLER, AK | 292 ft | 2 | 4,000 ft |
| PAAR Z91 | Birch Creek | BIRCH CREEK, AK | 439 ft | 1 | 4,000 ft |
| PAIK IAN | Bob Baker Meml | KIANA, AK | 178 ft | 1 | 4,000 ft |
| PACI CIK | Chalkyitsik | CHALKYITSIK, AK | 548 ft | 1 | 4,000 ft |
| PAHL HLA | Huslia | HUSLIA, AK | 219 ft | 1 | 4,000 ft |
| PFKU KYU | Koyukuk | KOYUKUK, AK | 148 ft | 1 | 4,000 ft |
| PARY RBY | Ruby | RUBY, AK | 657 ft | 1 | 4,000 ft |
| PFSV SVS | Stevens Village | STEVENS VILLAGE, AK | 328 ft | 1 | 4,000 ft |
| PAVE VEE | Venetie | VENETIE, AK | 574 ft | 1 | 4,000 ft |
| PACL Z84 | Clear | CLEAR, AK | 559 ft | 1 | 3,997 ft |
| PAKV KAL | Kaltag | KALTAG, AK | 181 ft | 1 | 3,986 ft |
| PAWB WBQ | Beaver | BEAVER, AK | 364 ft | 1 | 3,934 ft |
| CHP | Circle Hot Springs | CIRCLE HOT SPRINGS, AK | 870 ft | 1 | 3,669 ft |
| PFMP RMP | Rampart | RAMPART, AK | 306 ft | 1 | 3,520 ft |
| PAML MLY | Manley Hot Springs | MANLEY HOT SPRINGS, AK | 275 ft | 1 | 3,400 ft |
| PAAF 51Z | Minto Al Wright | MINTO, AK | 499 ft | 1 | 3,400 ft |
| PAHU HUS | Hughes | HUGHES, AK | 298 ft | 1 | 3,381 ft |
| PASK WLK | Selawik | SELAWIK, AK | 17 ft | 2 | 3,002 ft |
| PALR WCR | Chandalar Lake | CHANDALAR LAKE, AK | 1,920 ft | 1 | 3,000 ft |
| 4AK | Livengood Camp | LIVENGOOD, AK | 427 ft | 1 | 3,000 ft |
| PAIN INR | Mc Kinley Ntl Park | MCKINLEY PARK, AK | 1,720 ft | 1 | 3,000 ft |
| PACR CRC | Circle City | CIRCLE, AK | 613 ft | 1 | 2,979 ft |
| PAHV HRR | Healy River | HEALY, AK | 1,275 ft | 1 | 2,910 ft |
| PACE CEM | Central | CENTRAL, AK | 936 ft | 1 | 2,782 ft |
| PAAN AK7 | Gold King Creek | FAIRBANKS, AK | 1,720 ft | 1 | 2,558 ft |
| PAAG 5CD | Chandalar Shelf | CHANDALAR CAMP, AK | 3,222 ft | 1 | 2,529 ft |
| D66 | Delta Junction | DELTA JUNCTION, AK | 1,150 ft | 1 | 2,500 ft |
| 5BK | Black Rapids | BLACK RAPIDS, AK | 2,125 ft | 1 | 2,250 ft |
| WSM | Wiseman | WISEMAN, AK | 1,195 ft | 1 | 2,000 ft |
| Z90 | Stampede | KANTISHNA, AK | 1,852 ft | 1 | 1,960 ft |
| PAAH 5Z5 | Kantishna | KANTISHNA, AK | 1,578 ft | 1 | 1,887 ft |
| Z48 | Bear Creek 3 | BEAR CREEK, AK | 740 ft | 1 | 1,800 ft |
| 20K | Quail Creek | QUAIL CREEK, AK | 1,576 ft | 1 | 1,650 ft |
| 2AN | Tischner Air | ANDERSON, AK | 647 ft | 1 | 1,520 ft |
| 80A | American Creek | AMERICAN CREEK, AK | 513 ft | 1 | 1,500 ft |
| 2Z2 | Eureka Creek | EUREKA CREEK, AK | 700 ft | 1 | 1,500 ft |
| 2Z3 | Eva Creek | EVA CREEK, AK | 2,817 ft | 1 | 950 ft |
| 9AK | Totatlanika River | TOTATLANIKA RIVER, AK | 2,717 ft | 1 | 780 ft |
55 public-use airports within this chart's coverage, ordered by runway length. A further 37 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Alaska is available as a single 140.9 MB archive (594 charts) — see the Alaska airports.
It spans 63.4°N to 68.3°N and 160.7°W to 143.7°W. Airports on the sheet fall within Alaska. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (74.6 MB). Take the PDF to print it or read it on a second screen (156.8 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Nome to the west, Dawson to the east, Point Barrow to the north-east, McGrath to the south-west, Anchorage to the south-east and Cape Lisburne to the west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
