Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 62.0 MB | Download |
| Print-ready chart, no georeferencing | 129.6 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 129.6 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

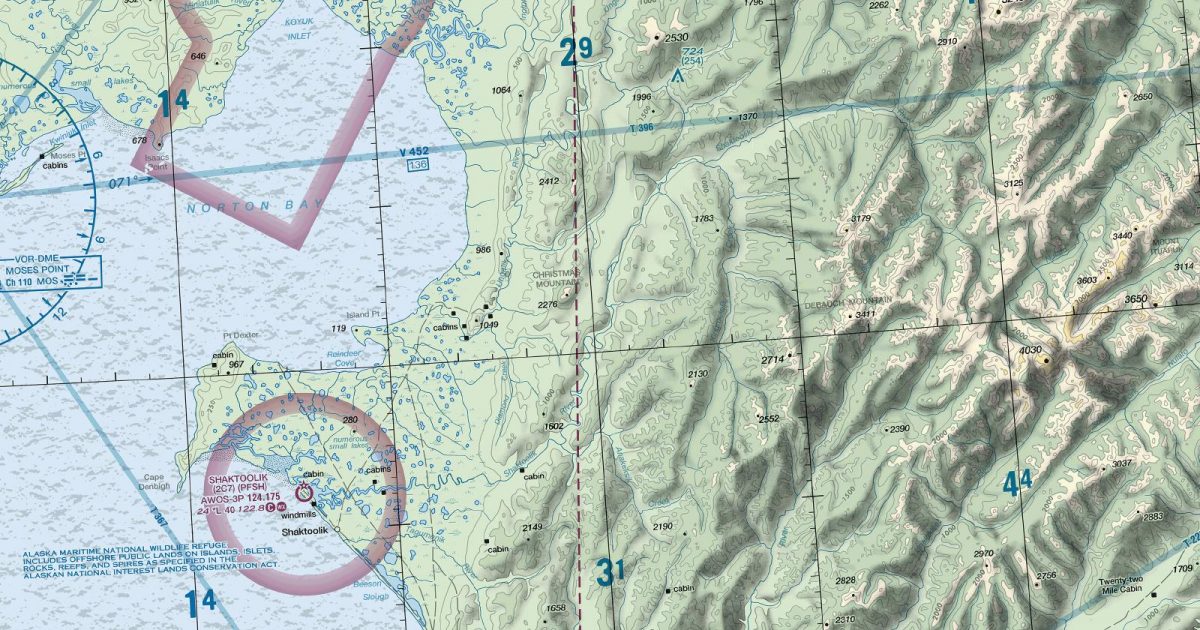

Go PROThe Bering Strait, Seward Peninsula and Norton Sound anchor a sheet that extends east into Alaska’s remote interior. It spans exposed coastline, islands and broad stretches of tundra, with river valleys and rugged western uplands shaping the inland landscape. The northern area reaches towards Kotzebue Sound and the western approaches to the Brooks Range, while the southern portion follows the country around Norton Sound.
Routes running north from the Seward Peninsula continue onto the Cape Lisburne chart. Eastbound coverage transfers to Fairbanks or Point Barrow, depending on latitude, while the southern joins are split between Bethel to the south-west and McGrath to the south-east. These adjoining sheets matter particularly here because journeys across western Alaska can pass from coastal terrain to a vast inland region within a single route.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| PAOT OTZ | Ralph Wien Meml | KOTZEBUE, AK | 15 ft | 2 | 6,300 ft |
| PAOM OME | Nome | NOME, AK | 40 ft | 2 | 6,176 ft |
| PAGA GAL | Edward G Pitka Sr | GALENA, AK | 153 ft | 2 | 6,000 ft |
| PAUN UNK | Unalakleet | UNALAKLEET, AK | 27 ft | 2 | 5,900 ft |
| PASH SHH | Shishmaref | SHISHMAREF, AK | 13 ft | 1 | 4,997 ft |
| PODC DCK | Dahl Creek | DAHL CREEK, AK | 260 ft | 1 | 4,780 ft |
| PAGM GAM | Gambell | GAMBELL, AK | 29 ft | 1 | 4,500 ft |
| PASA SVA | Savoonga | SAVOONGA, AK | 59 ft | 1 | 4,400 ft |
| PAOB OBU | Kobuk | KOBUK, AK | 142 ft | 1 | 4,020 ft |
| PANU NUL | Nulato | NULATO, AK | 405 ft | 1 | 4,011 ft |
| PFSH 2C7 | Shaktoolik | SHAKTOOLIK, AK | 24 ft | 1 | 4,001 ft |
| PAGH SHG | Shungnak | SHUNGNAK, AK | 205 ft | 1 | 4,001 ft |
| PAMK SMK | St Michael | ST MICHAEL, AK | 98 ft | 1 | 4,001 ft |
| PAFM AFM | Ambler | AMBLER, AK | 292 ft | 2 | 4,000 ft |
| PAIK IAN | Bob Baker Meml | KIANA, AK | 178 ft | 1 | 4,000 ft |
| PAGL GLV | Golovin | GOLOVIN, AK | 64 ft | 1 | 4,000 ft |
| PFKU KYU | Koyukuk | KOYUKUK, AK | 148 ft | 1 | 4,000 ft |
| PFNO D76 | Robert/Bob/Curtis Meml | NOORVIK, AK | 54 ft | 1 | 4,000 ft |
| PAWN WTK | Noatak | NOATAK, AK | 91 ft | 1 | 3,992 ft |
| PAIW IWK | Wales | WALES, AK | 25 ft | 1 | 3,990 ft |
| PAKV KAL | Kaltag | KALTAG, AK | 181 ft | 1 | 3,986 ft |
| PFEL ELI | Elim | ELIM, AK | 161 ft | 1 | 3,401 ft |
| PADE DEE | Deering | DEERING, AK | 29 ft | 2 | 3,320 ft |
| PABL BVK | Buckland | BUCKLAND, AK | 29 ft | 1 | 3,200 ft |
| PAKK KKA | Koyuk Alfred Adams | KOYUK, AK | 161 ft | 1 | 3,002 ft |
| PASK WLK | Selawik | SELAWIK, AK | 17 ft | 2 | 3,002 ft |
| K29 | Council | COUNCIL, AK | 100 ft | 1 | 3,000 ft |
| PAVL KVL | Kivalina | KIVALINA, AK | 18 ft | 1 | 3,000 ft |
| PAAS WBB | Stebbins | STEBBINS, AK | 18 ft | 1 | 3,000 ft |
| PAWM WMO | White Mountain | WHITE MOUNTAIN, AK | 267 ft | 1 | 3,000 ft |
| PFKT KTS | Brevig Mission | BREVIG MISSION, AK | 38 ft | 2 | 2,990 ft |
| PATE TER | Teller | TELLER, AK | 298 ft | 1 | 2,983 ft |
| 5QC | Quartz Creek / Kougarok | QUARTZ CREEK, AK | 416 ft | 1 | 2,960 ft |
| Z47 | Engstrom Fld | BASIN CREEK, AK | 143 ft | 1 | 2,000 ft |
| Z81 | Salmon Lake | SALMON LAKE, AK | 509 ft | 1 | 2,000 ft |
| 94Z | Nome City Fld | NOME, AK | 69 ft | 1 | 1,950 ft |
| 3Z1 | Feather River | FEATHER RIVER, AK | 325 ft | 1 | 1,190 ft |
37 public-use airports within this chart's coverage, ordered by runway length. A further 13 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Alaska is available as a single 140.9 MB archive (594 charts) — see the Alaska airports.
It spans 63.5°N to 68.3°N and 173.6°W to 156.6°W. Airports on the sheet fall within Alaska. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (62.0 MB). Take the PDF to print it or read it on a second screen (129.6 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Fairbanks to the east, Cape Lisburne to the north, Bethel to the south-west, McGrath to the south-east and Point Barrow to the east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
