Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 81.1 MB | Download |
| Print-ready chart, no georeferencing | 163.2 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 163.2 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

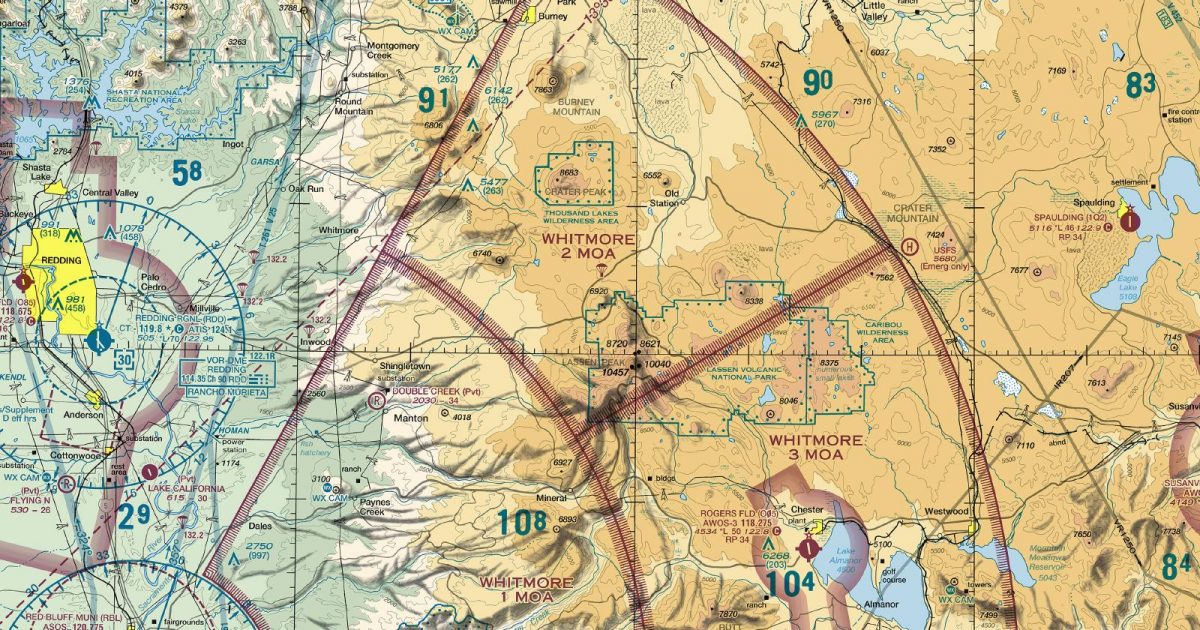

Go PROFrom the northern California and Oregon coast to the high desert of Nevada and western Idaho, the Klamath Falls sheet spans an unusually varied slice of the western United States. Its western side includes Pacific shoreline and coastal ranges before the ground rises through the Klamath and Siskiyou country. Farther east, the Cascades and volcanic uplands give way to broad interior basins, desert plateaux and isolated mountain ranges. This makes the chart particularly relevant to routes crossing between coastal, mountainous and inland terrain.
The chart sits between several major western sheets. San Francisco continues coverage to the south, while Seattle takes over to the north. Eastbound routes may pass onto Salt Lake City; crossings near the south-eastern corner lead towards Las Vegas, and those near the north-eastern corner towards Great Falls. These joins support longer routes through northern California, Oregon, Nevada and Idaho without treating the Klamath Falls area as a self-contained region.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KLMT LMT | Crater Lake/Klamath Rgnl | KLAMATH FALLS, OR | 4,095 ft | 2 | 10,302 ft |
| KMFR MFR | Rogue Valley Intl/Medford | MEDFORD, OR | 1,335 ft | 1 | 8,800 ft |
| KEUG EUG | Mahlon Sweet Fld | EUGENE, OR | 373 ft | 2 | 8,009 ft |
| KSIY SIY | Siskiyou County | MONTAGUE, CA | 2,651 ft | 1 | 7,490 ft |
| KBAM BAM | Battle Mountain | BATTLE MOUNTAIN, NV | 4,536 ft | 4 | 7,300 ft |
| KRDM RDM | Roberts Fld/Redmond Muni | REDMOND, OR | 3,081 ft | 3 | 7,038 ft |
| KRDD RDD | Redding Rgnl | REDDING, CA | 505 ft | 2 | 7,003 ft |
| KWMC WMC | Winnemucca Muni | WINNEMUCCA, NV | 4,307 ft | 4 | 7,000 ft |
| KCIC CIC | Chico Rgnl | CHICO, CA | 240 ft | 3 | 6,724 ft |
| R03 | Alkali Lake State | ALKALI LAKE, OR | 4,312 ft | 1 | 6,100 ft |
| KACV ACV | California Redwood Coast-Humboldt County | ARCATA/EUREKA, CA | 222 ft | 2 | 6,046 ft |
| KREO REO | Rome State | ROME, OR | 4,053 ft | 1 | 6,000 ft |
| KOTH OTH | Southwest Oregon Rgnl | NORTH BEND, OR | 17 ft | 2 | 5,980 ft |
| KCVO CVO | Corvallis Muni | CORVALLIS, OR | 249 ft | 2 | 5,900 ft |
| 26U | Mc Dermitt State | MC DERMITT, OR | 4,478 ft | 1 | 5,900 ft |
| KLOL LOL | Derby Fld | LOVELOCK, NV | 3,907 ft | 2 | 5,529 ft |
| KEUL EUL | Caldwell Exec | CALDWELL, ID | 2,431 ft | 1 | 5,500 ft |
| S21 | Sunriver | SUNRIVER, OR | 4,163 ft | 1 | 5,460 ft |
| KRBL RBL | Red Bluff Muni | RED BLUFF, CA | 352 ft | 2 | 5,431 ft |
| S39 | Prineville | PRINEVILLE, OR | 3,250 ft | 2 | 5,405 ft |
| KONP ONP | Newport Muni | NEWPORT, OR | 160 ft | 2 | 5,398 ft |
| 3S6 | Toketee State | CLEARWATER, OR | 3,361 ft | 1 | 5,350 ft |
| KLKV LKV | Lake County | LAKEVIEW, OR | 4,734 ft | 1 | 5,318 ft |
| KGCD GCD | Grant County Rgnl/Ogilvie Fld | JOHN DAY, OR | 3,702 ft | 5 | 5,224 ft |
| KBDN BDN | Bend Muni | BEND, OR | 3,459 ft | 1 | 5,201 ft |
| 62S | Christmas Valley | CHRISTMAS VALLEY, OR | 4,320 ft | 1 | 5,200 ft |
| KBNO BNO | Burns Muni | BURNS, OR | 4,148 ft | 2 | 5,101 ft |
| 5S6 | Cape Blanco State | SIXES, OR | 202 ft | 1 | 5,100 ft |
| O05 | Rogers Fld | CHESTER, CA | 4,534 ft | 1 | 5,020 ft |
| KONO ONO | Ontario Muni | ONTARIO, OR | 2,193 ft | 1 | 5,006 ft |
| KRBG RBG | Roseburg Rgnl | ROSEBURG, OR | 533 ft | 1 | 5,003 ft |
| KCEC CEC | Jack Mc Namara Fld | CRESCENT CITY, CA | 60 ft | 2 | 5,002 ft |
| O89 | Fall River Mills | FALL RIVER MILLS, CA | 3,328 ft | 1 | 5,000 ft |
| O46 | Weed | WEED, CA | 2,942 ft | 1 | 5,000 ft |
| 3S4 | Illinois Valley | CAVE JUNCTION, OR | 1,394 ft | 1 | 4,807 ft |
| O02 | Nervino | BECKWOURTH, CA | 4,899 ft | 1 | 4,651 ft |
| 1Q2 | Spaulding | SUSANVILLE, CA | 5,115 ft | 1 | 4,600 ft |
| 2S2 | Beaver Marsh | BEAVER MARSH, OR | 4,638 ft | 1 | 4,500 ft |
| O59 | Cedarville | CEDARVILLE, CA | 4,623 ft | 1 | 4,415 ft |
| A32 | Butte Valley | DORRIS, CA | 4,243 ft | 1 | 4,300 ft |
| 22S | Paisley | PAISLEY, OR | 4,395 ft | 1 | 4,300 ft |
| KAAT AAT | Alturas Muni | ALTURAS, CA | 4,378 ft | 2 | 4,228 ft |
| A24 | California Pines | ALTURAS, CA | 4,389 ft | 1 | 4,159 ft |
| 2O1 | Gansner Fld | QUINCY, CA | 3,418 ft | 1 | 4,105 ft |
| F62 | Hayfork | HAYFORK, CA | 2,333 ft | 1 | 4,100 ft |
| KSVE SVE | Susanville Muni | SUSANVILLE, CA | 4,149 ft | 3 | 4,051 ft |
| KFOT FOT | Rohnerville | FORTUNA, CA | 392 ft | 1 | 4,004 ft |
| 3S8 | Grants Pass | GRANTS PASS, OR | 1,130 ft | 1 | 4,001 ft |
| S87 | Weiser Muni | WEISER, ID | 2,120 ft | 1 | 4,000 ft |
| 64S | Prospect State | PROSPECT, OR | 2,578 ft | 1 | 3,986 ft |
| S49 | Miller Meml Airpark | VALE, OR | 2,249 ft | 2 | 3,872 ft |
| 2S7 | Chiloquin State | CHILOQUIN, OR | 4,221 ft | 1 | 3,749 ft |
| A30 | Scott Valley | FORT JONES, CA | 2,728 ft | 1 | 3,700 ft |
| O09 | Round Valley | COVELO, CA | 1,434 ft | 1 | 3,670 ft |
| A28 | Fort Bidwell | FORT BIDWELL, CA | 4,616 ft | 1 | 3,660 ft |
| 5S0 | Oakridge State | OAKRIDGE, OR | 1,393 ft | 1 | 3,610 ft |
| 5S2 | Crescent Lake State | CRESCENT LAKE, OR | 4,819 ft | 1 | 3,608 ft |
| S03 | Ashland Muni/Sumner Parker Fld | ASHLAND, OR | 1,888 ft | 1 | 3,603 ft |
| S05 | Bandon State | BANDON, OR | 122 ft | 1 | 3,601 ft |
| O81 | Tulelake Muni | TULELAKE, CA | 4,048 ft | 1 | 3,577 ft |
| 6K5 | Sisters Eagle Air | SISTERS, OR | 3,168 ft | 1 | 3,560 ft |
| S75 | Payette Muni | PAYETTE, ID | 2,230 ft | 1 | 3,534 ft |
| T42 | Ruth | RUTH, CA | 2,781 ft | 1 | 3,500 ft |
| E85 | Denio Junction | DENIO, NV | 4,202 ft | 2 | 3,430 ft |
| 0Q5 | Shelter Cove | SHELTER COVE, CA | 73 ft | 1 | 3,407 ft |
| 1O5 | Montague-Yreka Rohrer Fld | MONTAGUE, CA | 2,527 ft | 2 | 3,360 ft |
| H37 | Herlong | HERLONG, CA | 4,062 ft | 1 | 3,260 ft |
| O86 | Trinity Center | TRINITY CENTER, CA | 2,390 ft | 1 | 3,215 ft |
| 61S | Cottage Grove State | COTTAGE GROVE, OR | 644 ft | 1 | 3,201 ft |
| 4S1 | Gold Beach Muni | GOLD BEACH, OR | 20 ft | 1 | 3,200 ft |
| O54 | Lonnie Pool Fld/Weaverville | WEAVERVILLE, CA | 2,350 ft | 1 | 3,181 ft |
| 77S | Hobby Fld | CRESWELL, OR | 541 ft | 1 | 3,102 ft |
| KEKA EKA | Murray Fld | EUREKA, CA | 10 ft | 1 | 3,011 ft |
| 6S2 | Florence Muni | FLORENCE, OR | 50 ft | 1 | 3,000 ft |
| 36S | Happy Camp | HAPPY CAMP, CA | 1,209 ft | 1 | 3,000 ft |
| 45S | Silver Lake F S Strip | SILVER LAKE, OR | 4,492 ft | 1 | 3,000 ft |
| 0O9 | Ward Fld | GASQUET, CA | 356 ft | 1 | 2,990 ft |
| H47 | Hyampom | HYAMPOM, CA | 1,277 ft | 1 | 2,980 ft |
| O55 | Southard Fld | BIEBER, CA | 4,163 ft | 1 | 2,980 ft |
| KBOK BOK | Brookings | BROOKINGS, OR | 461 ft | 1 | 2,901 ft |
| S66 | Homedale Muni | HOMEDALE, ID | 2,220 ft | 1 | 2,901 ft |
| 0U9 | Lee Williams Meml | MIDVALE, ID | 2,617 ft | 1 | 2,875 ft |
| A26 | Adin | ADIN, CA | 4,234 ft | 1 | 2,850 ft |
| 1O6 | Dunsmuir Muni-Mott | DUNSMUIR, CA | 3,261 ft | 1 | 2,800 ft |
| 4S7 | Malin | MALIN, OR | 4,053 ft | 1 | 2,800 ft |
| 24S | Pinehurst State | PINEHURST, OR | 3,643 ft | 1 | 2,800 ft |
| 8S3 | Santiam Junction State | SANTIAM JUNCTION, OR | 3,780 ft | 1 | 2,800 ft |
| O16 | Garberville | GARBERVILLE, CA | 550 ft | 1 | 2,783 ft |
| S30 | Lebanon State | LEBANON, OR | 348 ft | 1 | 2,747 ft |
| 50S | Parma | PARMA, ID | 2,228 ft | 1 | 2,700 ft |
| O33 | Samoa Fld | EUREKA, CA | 20 ft | 1 | 2,700 ft |
| 0O4 | Corning Muni | CORNING, CA | 295 ft | 1 | 2,699 ft |
| O39 | Ravendale | RAVENDALE, CA | 5,306 ft | 1 | 2,607 ft |
| 00S | Mc Kenzie Bridge State | MC KENZIE BRIDGE, OR | 1,620 ft | 1 | 2,600 ft |
| 16S | Myrtle Creek Muni | MYRTLE CREEK, OR | 619 ft | 1 | 2,600 ft |
| D63 | Dinsmore | DINSMORE, CA | 2,392 ft | 1 | 2,504 ft |
| 5S5 | Lake Billy Chinook | CULVER, OR | 2,695 ft | 1 | 2,500 ft |
| 6S6 | Powers | POWERS, OR | 326 ft | 1 | 2,500 ft |
| O85 | Benton Fld | REDDING, CA | 723 ft | 1 | 2,420 ft |
| S51 | Andy Mc Beth | KLAMATH GLEN, CA | 42 ft | 1 | 2,400 ft |
| O21 | Hoopa | HOOPA, CA | 356 ft | 1 | 2,325 ft |
| 5S1 | George Felt | ROSEBURG, OR | 428 ft | 1 | 2,300 ft |
| O19 | Kneeland | EUREKA, CA | 2,741 ft | 1 | 2,250 ft |
| 9S3 | Lakeside Muni | LAKESIDE, OR | 20 ft | 1 | 2,150 ft |
| R33 | Wakonda Beach State | WALDPORT, OR | 41 ft | 1 | 2,000 ft |
| 28U | Owyhee Reservoir State | OWYHEE, OR | 2,680 ft | 1 | 1,840 ft |
| 5S4 | Toledo State | TOLEDO, OR | 12 ft | 1 | 1,750 ft |
107 public-use airports within this chart's coverage, ordered by runway length. A further 159 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Oregon is available as a single 60.4 MB archive (215 charts) — see the Oregon airports.
It spans 39.8°N to 44.6°N and 126.2°W to 116.6°W. Airports on the sheet fall within California, Idaho, Nevada and Oregon. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (81.1 MB). Take the PDF to print it or read it on a second screen (163.2 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
San Francisco to the south, Salt Lake City to the east, Seattle to the north, Las Vegas to the south-east and Great Falls to the north-east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
