Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 62.3 MB | Download |
| Print-ready chart, no georeferencing | 128.9 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 128.9 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

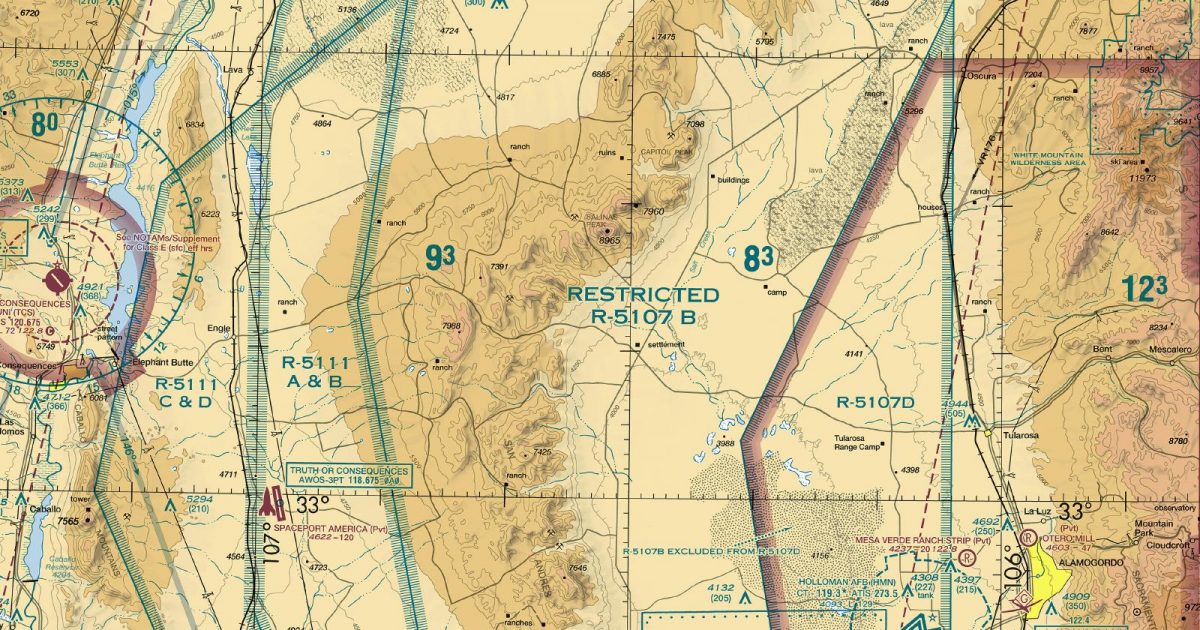

Go PROAlbuquerque anchors a sheet spanning most of New Mexico, with coverage extending into eastern Arizona and far western Texas. High desert, plateaux and broken mountain country shape the west and centre, while the Rio Grande corridor cuts through the heart of the region. Farther east, the terrain opens towards the Llano Estacado and southern High Plains; to the south-east, the Trans-Pecos and Guadalupe country adds another stretch of rugged, arid ground.
Longer east–west routes continue onto Phoenix in the west or Dallas-Ft Worth in the east. Southbound coverage passes to El Paso, while routes leaving near the south-eastern corner connect with San Antonio. Denver adjoins to the north-west and Wichita to the north-east. These joins support crossings between the Southwest and the plains, where enclosed desert valleys, uplands and broad open country may all feature along the same route.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KABQ ABQ | Albuquerque Intl Sunport | ALBUQUERQUE, NM | 5,354 ft | 3 | 13,793 ft |
| KROW ROW | Roswell Air Center | ROSWELL, NM | 3,671 ft | 4 | 13,000 ft |
| KELP ELP | El Paso Intl | EL PASO, TX | 3,961 ft | 3 | 12,020 ft |
| KLBB LBB | Lubbock Preston Smith Intl | LUBBOCK, TX | 3,282 ft | 3 | 11,500 ft |
| KDNA DNA | Dona Ana County Intl Jetport | SANTA TERESA, NM | 4,112 ft | 1 | 9,550 ft |
| KMAF MAF | Midland Intl Air And Space Port | MIDLAND, TX | 2,872 ft | 4 | 9,501 ft |
| KALM ALM | Alamogordo-White Sands Rgnl | ALAMOGORDO, NM | 4,199 ft | 3 | 9,207 ft |
| KJTC JTC | Springerville Muni | SPRINGERVILLE, AZ | 7,055 ft | 2 | 8,422 ft |
| KSAF SAF | Santa Fe Rgnl | SANTA FE, NM | 6,348 ft | 4 | 8,366 ft |
| KLVS LVS | Las Vegas Muni | LAS VEGAS, NM | 6,877 ft | 2 | 8,199 ft |
| KSRR SRR | Sierra Blanca Rgnl | RUIDOSO, NM | 6,813 ft | 2 | 8,120 ft |
| KDMN DMN | Deming Muni | DEMING, NM | 4,314 ft | 2 | 8,018 ft |
| KHOB HOB | Lea County Rgnl | HOBBS, NM | 3,660 ft | 3 | 8,000 ft |
| KCNM CNM | Cavern City Air Trml | CARLSBAD, NM | 3,294 ft | 4 | 7,854 ft |
| 0E0 | Moriarty Muni | MORIARTY, NM | 6,204 ft | 2 | 7,702 ft |
| KLRU LRU | Las Cruces Intl | LAS CRUCES, NM | 4,456 ft | 3 | 7,506 ft |
| KAEG AEG | Double Eagle II | ALBUQUERQUE, NM | 5,837 ft | 2 | 7,398 ft |
| KGUP GUP | Gallup Muni | GALLUP, NM | 6,472 ft | 1 | 7,312 ft |
| KSOW SOW | Show Low Rgnl | SHOW LOW, AZ | 6,415 ft | 2 | 7,202 ft |
| KTCS TCS | Truth Or Consequences Muni | TRUTH OR CONSEQUENCES, NM | 4,861 ft | 5 | 7,202 ft |
| KCVN CVN | Clovis Rgnl | CLOVIS, NM | 4,215 ft | 3 | 7,200 ft |
| KGNT GNT | Grants-Milan Muni | GRANTS, NM | 6,536 ft | 1 | 7,172 ft |
| KTCC TCC | Tucumcari Muni | TUCUMCARI, NM | 4,064 ft | 2 | 7,104 ft |
| KTYL TYL | Taylor | TAYLOR, AZ | 5,823 ft | 1 | 7,001 ft |
| KRQE RQE | Window Rock | WINDOW ROCK, AZ | 6,742 ft | 1 | 7,000 ft |
| E91 | Chinle Muni | CHINLE, AZ | 5,550 ft | 1 | 6,902 ft |
| KSVC SVC | Grant County | SILVER CITY, NM | 5,445 ft | 4 | 6,803 ft |
| KATS ATS | Artesia Muni | ARTESIA, NM | 3,544 ft | 2 | 6,800 ft |
| P14 | Holbrook Muni | HOLBROOK, AZ | 5,261 ft | 2 | 6,698 ft |
| KBRG BRG | Belen Rgnl | BELEN, NM | 5,199 ft | 2 | 6,601 ft |
| KDHT DHT | Dalhart Muni | DALHART, TX | 3,991 ft | 2 | 6,400 ft |
| E24 | Whiteriver | WHITERIVER, AZ | 5,153 ft | 1 | 6,350 ft |
| 1E7 | Buffalo | AMARILLO, TX | 3,640 ft | 2 | 6,200 ft |
| KODO ODO | Odessa-Schlemeyer Fld | ODESSA, TX | 3,003 ft | 3 | 6,200 ft |
| KLLN LLN | Levelland Muni | LEVELLAND, TX | 3,514 ft | 2 | 6,110 ft |
| KHRX HRX | Hereford Muni | HEREFORD, TX | 3,787 ft | 2 | 6,100 ft |
| P33 | Cochise County | WILLCOX, AZ | 4,187 ft | 1 | 6,095 ft |
| KSAD SAD | Safford Rgnl/1lt Duane Spalsbury Fld | SAFFORD, AZ | 3,178 ft | 3 | 6,007 ft |
| E06 | Lea County/Zip Franklin Meml | LOVINGTON, NM | 3,979 ft | 2 | 6,001 ft |
| KDUX DUX | Moore County | DUMAS, TX | 3,706 ft | 2 | 6,001 ft |
| KXNI XNI | Andrew Othole Meml | ZUNI, NM | 6,371 ft | 1 | 6,000 ft |
| KLAM LAM | Los Alamos | LOS ALAMOS, NM | 7,170 ft | 1 | 6,000 ft |
| KONM ONM | Socorro Muni | SOCORRO, NM | 4,875 ft | 2 | 5,841 ft |
| 0E8 | Crownpoint | CROWNPOINT, NM | 6,696 ft | 1 | 5,820 ft |
| E11 | Andrews County | ANDREWS, TX | 3,174 ft | 4 | 5,816 ft |
| KFSU FSU | Fort Sumner Muni | FORT SUMNER, NM | 4,164 ft | 2 | 5,800 ft |
| E57 | Denver City | DENVER CITY, TX | 3,575 ft | 2 | 5,780 ft |
| N29 | Magdalena | MAGDALENA, NM | 6,729 ft | 1 | 5,762 ft |
| KPRZ PRZ | Portales Muni | PORTALES, NM | 4,077 ft | 2 | 5,700 ft |
| KMDD MDD | Midland Airpark | MIDLAND, TX | 2,805 ft | 2 | 5,571 ft |
| T55 | Dimmitt Muni | DIMMITT, TX | 3,883 ft | 1 | 5,500 ft |
| 94E | Whiskey Creek | SILVER CITY, NM | 6,126 ft | 1 | 5,400 ft |
| KGNC GNC | Gaines County | SEMINOLE, TX | 3,314 ft | 2 | 5,381 ft |
| KSJN SJN | St Johns Industrial Air Park | ST JOHNS, AZ | 5,736 ft | 2 | 5,322 ft |
| KLSB LSB | Lordsburg Muni | LORDSBURG, NM | 4,287 ft | 2 | 5,224 ft |
| KBFE BFE | Terry County | BROWNFIELD, TX | 3,264 ft | 2 | 5,218 ft |
| 13Q | Jewett Mesa | APACHE CREEK, NM | 7,681 ft | 1 | 5,200 ft |
| N17 | Vaughn Muni | VAUGHN, NM | 5,935 ft | 1 | 5,150 ft |
| F82 | Lubbock Exec Airpark | LUBBOCK, TX | 3,175 ft | 2 | 5,144 ft |
| 2T1 | Muleshoe Muni | MULESHOE, TX | 3,779 ft | 1 | 5,100 ft |
| KTDW TDW | Tradewind | AMARILLO, TX | 3,648 ft | 3 | 5,098 ft |
| KSXU SXU | Santa Rosa Route 66 | SANTA ROSA, NM | 4,791 ft | 2 | 5,013 ft |
| E14 | Ohkay Owingeh | ESPANOLA, NM | 5,760 ft | 1 | 5,007 ft |
| KINK INK | Winkler County | WINK, TX | 2,821 ft | 2 | 5,003 ft |
| KLUV LUV | Lamesa Muni | LAMESA, TX | 2,998 ft | 2 | 5,002 ft |
| F98 | Yoakum County | PLAINS, TX | 3,705 ft | 2 | 5,001 ft |
| 7T7 | Skywest Inc | MIDLAND, TX | 2,805 ft | 2 | 5,000 ft |
| KCFT CFT | Greenlee County | CLIFTON/MORENCI, AZ | 3,797 ft | 1 | 4,978 ft |
| F37 | Carrizozo Muni | CARRIZOZO, NM | 5,372 ft | 2 | 4,944 ft |
| I06 | City Of Tulia/Swisher County Muni | TULIA, TX | 3,503 ft | 1 | 4,876 ft |
| E02 | Timberon | ALAMOGORDO, NM | 6,963 ft | 2 | 4,860 ft |
| 1N1 | Sandia Airpark Estates East | EDGEWOOD, NM | 6,565 ft | 1 | 4,830 ft |
| E89 | Conchas Lake | CONCHAS DAM, NM | 4,232 ft | 1 | 4,800 ft |
| T16 | Reserve | RESERVE, NM | 6,364 ft | 1 | 4,800 ft |
| E26 | Lea County/Jal | JAL, NM | 3,118 ft | 2 | 4,704 ft |
| 2E5 | Dell City Muni | DELL CITY, TX | 3,703 ft | 1 | 4,685 ft |
| P29 | Tombstone Muni | TOMBSTONE, AZ | 4,733 ft | 1 | 4,430 ft |
| E98 | Mid Valley Airpark | LOS LUNAS, NM | 4,835 ft | 1 | 4,332 ft |
| E01 | Roy Hurd Meml | MONAHANS, TX | 2,614 ft | 2 | 4,268 ft |
| 63F | Stanton Muni | STANTON, TX | 2,731 ft | 1 | 4,240 ft |
| E52 | Oldham County | VEGA, TX | 3,995 ft | 1 | 4,200 ft |
| E35 | Fabens | FABENS, TX | 3,680 ft | 1 | 4,197 ft |
| NM2 | Cuba Landing Strip | CUBA, NM | 6,840 ft | 1 | 4,137 ft |
| E05 | Hatch Muni | HATCH, NM | 4,128 ft | 1 | 4,110 ft |
| KLIU LIU | Littlefield Taylor Brown Muni | LITTLEFIELD, TX | 3,615 ft | 2 | 4,021 ft |
| E92 | Estancia Muni | ESTANCIA, NM | 6,100 ft | 1 | 4,000 ft |
| T96 | Southwest Lubbock | WOLFFORTH, TX | 3,265 ft | 1 | 4,000 ft |
| X43 | Sunray | SUNRAY, TX | 3,507 ft | 2 | 3,760 ft |
| E94 | Glenwood | GLENWOOD, NM | 5,433 ft | 1 | 3,700 ft |
| 1E4 | Palo Duro | AMARILLO, TX | 3,639 ft | 1 | 3,700 ft |
| 2F4 | T-Bar | TAHOKA, TX | 3,126 ft | 2 | 3,278 ft |
| E37 | Flying J Ranch | PIMA, AZ | 3,114 ft | 2 | 2,950 ft |
| 18T | Tatum | TATUM, NM | 3,986 ft | 1 | 2,920 ft |
| F85 | Cochran County | MORTON, TX | 3,747 ft | 2 | 2,710 ft |
| M10 | Mountainair Muni | MOUNTAINAIR, NM | 6,492 ft | 2 | 2,578 ft |
95 public-use airports within this chart's coverage, ordered by runway length. A further 108 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for New Mexico is available as a single 39.4 MB archive (185 charts) — see the New Mexico airports.
It spans 31.5°N to 36.3°N and 110.2°W to 101.8°W. Airports on the sheet fall within Arizona, New Mexico and Texas. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (62.3 MB). Take the PDF to print it or read it on a second screen (128.9 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Dallas-Ft Worth to the east, Phoenix to the west, El Paso to the south, Denver to the north-west, Wichita to the north-east and San Antonio to the south-east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
