Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 36.4 MB | Download |
| Print-ready chart, no georeferencing | 75.0 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 75.0 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

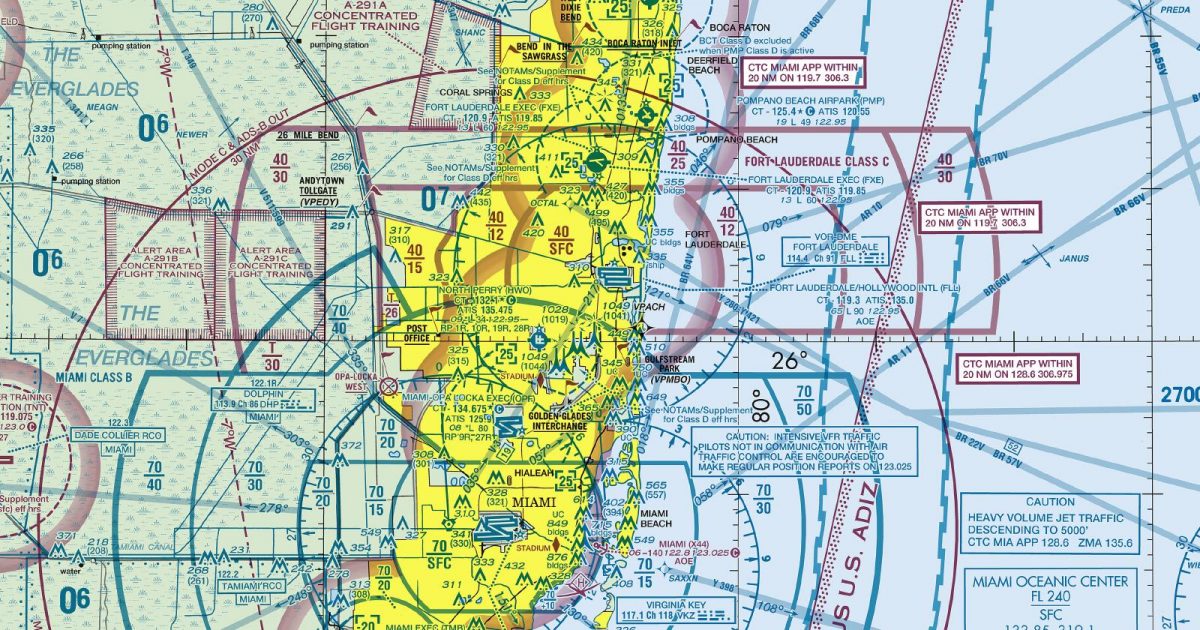

Go PROSouth Florida’s peninsula, the Florida Keys and the western Bahamas define this sheet, with coverage stretching from the Cape Canaveral area to the Straits of Florida and westwards into the Gulf of Mexico. Much of the chart is coastal or over water, combining low-lying mainland terrain, island chains, bays and broad sea crossings. The Jacksonville sectional adjoins to the north-west for routes continuing beyond central Florida.
The sectional provides the wider regional view needed to place journeys across the peninsula, along either coast or through the Keys and nearby islands. The Terminal Area Chart covering the same locality serves a different purpose: its larger scale gives a more concentrated view of the principal terminal area, while this sheet retains the broader geographical context across South Florida and surrounding waters.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KMIA MIA | Miami Intl | MIAMI, FL | 9 ft | 4 | 13,016 ft |
| KMCO MCO | Orlando Intl | ORLANDO, FL | 96 ft | 4 | 12,005 ft |
| KRSW RSW | Southwest Florida Intl | FORT MYERS, FL | 29 ft | 1 | 12,000 ft |
| MYNN | Lynden Pindling Intl | NASSAU | 16 ft | 2 | 11,107 ft |
| MYGF | Grand Bahama Intl | FREEPORT | 6 ft | 1 | 11,018 ft |
| KTPA TPA | Tampa Intl | TAMPA, FL | 26 ft | 3 | 11,002 ft |
| KTNT TNT | Dade-Collier Training And Transition | MIAMI, FL | 12 ft | 1 | 10,499 ft |
| KMLB MLB | Melbourne Orlando Intl | MELBOURNE, FL | 33 ft | 3 | 10,181 ft |
| KDJT DJT | President Donald J Trump Intl | WEST PALM BEACH, FL | 19 ft | 3 | 10,001 ft |
| KPIE PIE | St Pete-Clearwater Intl | ST PETERSBURG-CLEARWATER, FL | 10 ft | 2 | 9,730 ft |
| KSRQ SRQ | Sarasota/Bradenton Intl | SARASOTA/BRADENTON, FL | 29 ft | 2 | 9,500 ft |
| KFLL FLL | Fort Lauderdale/Hollywood Intl | FORT LAUDERDALE, FL | 65 ft | 2 | 9,000 ft |
| KLAL LAL | Lakeland Linder Intl | LAKELAND, FL | 141 ft | 3 | 8,500 ft |
| KOPF OPF | Miami-Opa Locka Exec | MIAMI, FL | 8 ft | 3 | 8,002 ft |
| KTIX TIX | Space Coast Rgnl | TITUSVILLE, FL | 34 ft | 2 | 7,319 ft |
| KVRB VRB | Vero Beach Rgnl | VERO BEACH, FL | 23 ft | 3 | 7,314 ft |
| KPGD PGD | Punta Gorda | PUNTA GORDA, FL | 25 ft | 3 | 7,193 ft |
| KBKV BKV | Brooksville-Tampa Bay Rgnl | BROOKSVILLE, FL | 76 ft | 2 | 7,001 ft |
| MYAT | Treasure Cay | TREASURE CAY | 10 ft | 1 | 7,001 ft |
| KAPF APF | Naples Muni | NAPLES, FL | 8 ft | 3 | 6,600 ft |
| KFPR FPR | Treasure Coast Intl | FORT PIERCE, FL | 23 ft | 3 | 6,492 ft |
| KFMY FMY | Page Fld | FORT MYERS, FL | 17 ft | 2 | 6,406 ft |
| X58 | Indiantown | INDIANTOWN, FL | 30 ft | 1 | 6,300 ft |
| KBCT BCT | Boca Raton | BOCA RATON, FL | 12 ft | 1 | 6,276 ft |
| KZPH ZPH | Zephyrhills Muni | ZEPHYRHILLS, FL | 89 ft | 2 | 6,201 ft |
| MYAM | Leonard M Thompson Intl | MARSH HARBOUR | 8 ft | 1 | 6,100 ft |
| MYEH | North Eleuthera | NORTH ELEUTHERA | 27 ft | 1 | 6,019 ft |
| KORL ORL | Orlando Exec | ORLANDO, FL | 112 ft | 2 | 6,004 ft |
| KFXE FXE | Fort Lauderdale Exec | FORT LAUDERDALE, FL | 13 ft | 2 | 6,002 ft |
| KISM ISM | Kissimmee Gateway | ORLANDO, FL | 82 ft | 2 | 6,001 ft |
| KTMB TMB | Miami Exec | MIAMI, FL | 10 ft | 4 | 6,000 ft |
| 2IS | Airglades | CLEWISTON, FL | 20 ft | 1 | 5,902 ft |
| KSUA SUA | Witham Fld | STUART, FL | 16 ft | 3 | 5,828 ft |
| KVNC VNC | Venice Muni | VENICE, FL | 18 ft | 2 | 5,640 ft |
| X07 | Lake Wales Muni | LAKE WALES, FL | 126 ft | 2 | 5,400 ft |
| MYBS | South Bimini | SOUTH BIMINI | 8 ft | 1 | 5,391 ft |
| KAVO AVO | Avon Park Exec | AVON PARK, FL | 160 ft | 2 | 5,374 ft |
| MYAK | Congo Town | CONGO TOWN | 20 ft | 1 | 5,321 ft |
| X14 | La Belle Muni | LA BELLE, FL | 20 ft | 1 | 5,254 ft |
| KSEF SEF | Sebring Rgnl | SEBRING, FL | 61 ft | 2 | 5,234 ft |
| KEYW EYW | Key West Intl | KEY WEST, FL | 3 ft | 1 | 5,076 ft |
| MYAB | Clarence A Bain | MANGROVE CAY | 12 ft | 1 | 5,015 ft |
| KMTH MTH | The Florida Keys Marathon Intl | MARATHON, FL | 7 ft | 1 | 5,008 ft |
| KGIF GIF | Winter Haven Rgnl | WINTER HAVEN, FL | 145 ft | 2 | 5,005 ft |
| MYAN | San Andros | NICHOLLS TOWN | 10 ft | 1 | 5,002 ft |
| KBOW BOW | Bartow Exec | BARTOW, FL | 124 ft | 3 | 5,001 ft |
| KIMM IMM | Immokalee Rgnl | IMMOKALEE, FL | 37 ft | 2 | 5,000 ft |
| KMKY MKY | Marco Island Exec | MARCO ISLAND, FL | 5 ft | 1 | 5,000 ft |
| KOBE OBE | Okeechobee County | OKEECHOBEE, FL | 33 ft | 2 | 5,000 ft |
| KVDF VDF | Tampa Exec | TAMPA, FL | 21 ft | 2 | 5,000 ft |
| 2RR | River Ranch Resort | RIVER RANCH, FL | 55 ft | 1 | 4,950 ft |
| KPMP PMP | Pompano Beach Airpark | POMPANO BEACH, FL | 19 ft | 3 | 4,918 ft |
| MYBG | Great Harbour Cay | BULLOCKS HARBOUR | 23 ft | 1 | 4,536 ft |
| MYAS | Sandy Point | SANDY POINT | 8 ft | 1 | 4,500 ft |
| MYAF | Fresh Creek | FRESH CREEK | 11 ft | 1 | 4,362 ft |
| F45 | North Palm Beach County General Aviation | WEST PALM BEACH, FL | 22 ft | 3 | 4,300 ft |
| KPHK PHK | Palm Beach County Glades | PAHOKEE, FL | 15 ft | 1 | 4,116 ft |
| KCLW CLW | Clearwater Exec | CLEARWATER, FL | 71 ft | 1 | 4,108 ft |
| X26 | Sebastian Muni | SEBASTIAN, FL | 21 ft | 2 | 4,023 ft |
| KCHN CHN | Wauchula Muni | WAUCHULA, FL | 107 ft | 1 | 4,005 ft |
| X51 | Miami Homestead General Aviation | HOMESTEAD, FL | 7 ft | 3 | 4,001 ft |
| X59 | Valkaria | VALKARIA, FL | 25 ft | 2 | 4,000 ft |
| KPCM PCM | Plant City | PLANT CITY, FL | 152 ft | 1 | 3,950 ft |
| X06 | Arcadia Muni | ARCADIA, FL | 63 ft | 2 | 3,700 ft |
| X05 | Pilot Country | BROOKSVILLE, FL | 80 ft | 1 | 3,700 ft |
| KSPG SPG | Albert Whitted | ST PETERSBURG, FL | 6 ft | 2 | 3,676 ft |
| KCOI COI | Merritt Island | MERRITT ISLAND, FL | 5 ft | 1 | 3,601 ft |
| KTPF TPF | Peter O Knight | TAMPA, FL | 7 ft | 2 | 3,583 ft |
| X39 | Tampa North Aero Park | TAMPA, FL | 68 ft | 1 | 3,541 ft |
| KLNA LNA | Palm Beach County Park | WEST PALM BEACH, FL | 14 ft | 3 | 3,489 ft |
| KHWO HWO | North Perry | HOLLYWOOD, FL | 8 ft | 4 | 3,463 ft |
| X10 | Belle Glade State Muni | BELLE GLADE, FL | 10 ft | 1 | 3,449 ft |
| 48X | Manatee | PALMETTO, FL | 27 ft | 1 | 3,120 ft |
| X52 | New Hibiscus Airpark | VERO BEACH, FL | 25 ft | 1 | 3,120 ft |
| MYES | Staniel Cay | STANIEL CAY | 5 ft | 1 | 3,030 ft |
| F13 | Shell Creek Airpark | PUNTA GORDA, FL | 20 ft | 1 | 2,600 ft |
| X49 | South Lakeland | LAKELAND, FL | 110 ft | 1 | 2,412 ft |
| X01 | Everglades Airpark | EVERGLADES CITY, FL | 4 ft | 1 | 2,400 ft |
| X25 | Chalet Suzanne Air Strip | LAKE WALES, FL | 130 ft | 1 | 2,313 ft |
| X36 | Buchan | ENGLEWOOD, FL | 15 ft | 1 | 2,040 ft |
80 public-use airports within this chart's coverage, ordered by runway length. A further 142 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Florida is available as a single 189.2 MB archive (934 charts) — see the Florida airports.
It spans 23.8°N to 28.5°N and 83.8°W to 76.3°W. Airports on the sheet fall within Florida. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (36.4 MB). Take the PDF to print it or read it on a second screen (75.0 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Jacksonville to the north-west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
